Subsidence and Cracking in Brickwork – Could a Broken Drain Be Responsible?

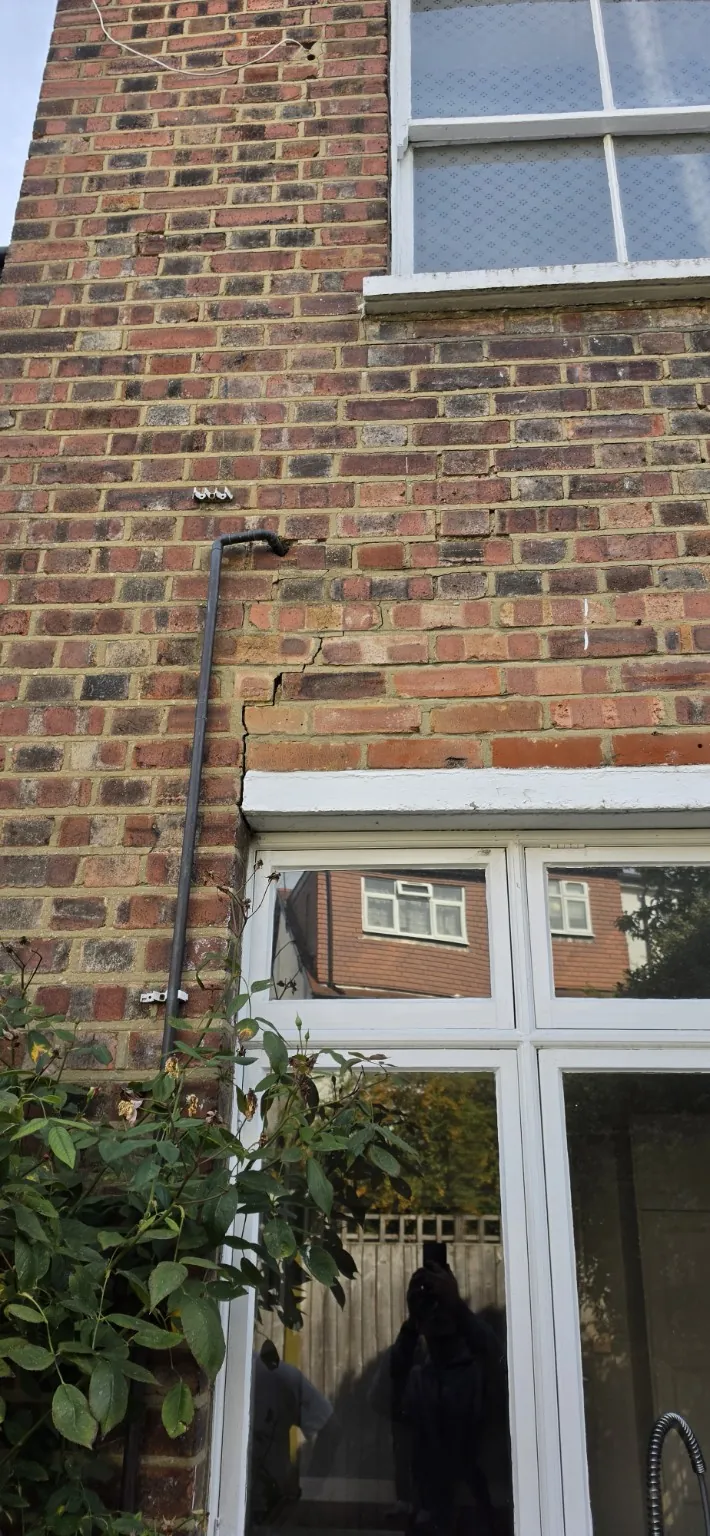

The photograph above shows visible cracking in the external brickwork of this residential property in Chiswick W4, where Rapid Drainage and Plumbing Ltd carried out a specialist post-purchase drainage investigation.

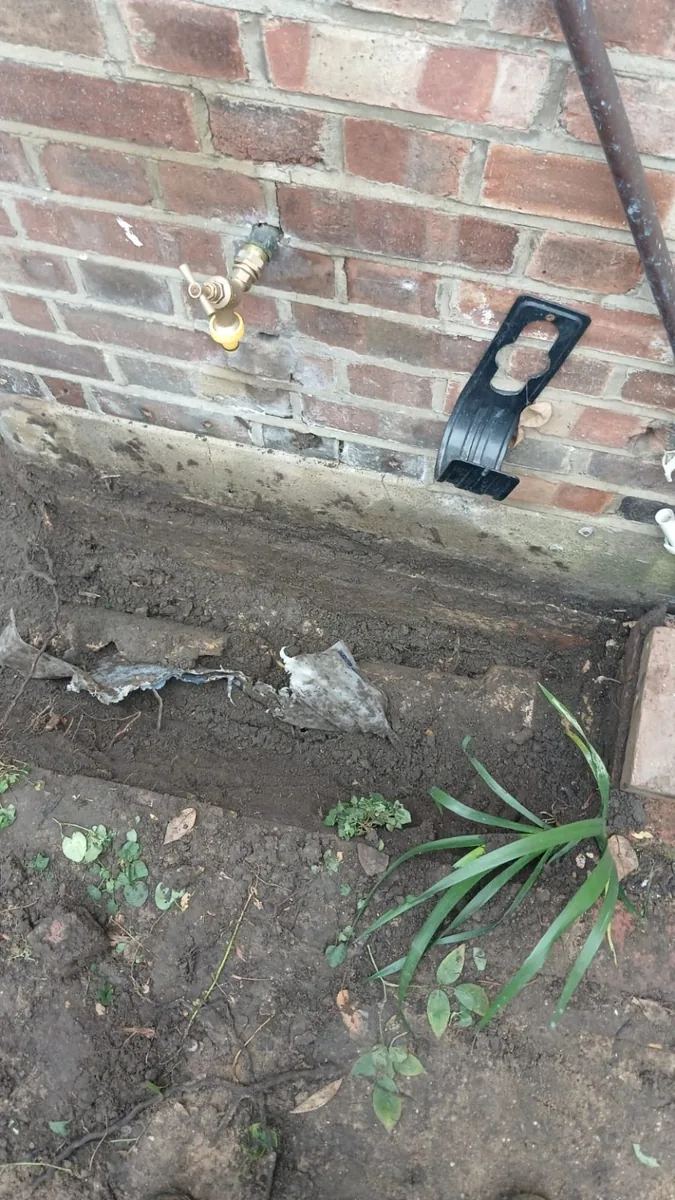

One of the most concerning findings was the discovery of a severely damaged underground drainage pipe situated close to the property's external wall.

Our investigation also revealed evidence of previous poorly executed drainage repairs, displaced joints and additional defects within the underground drainage system.

These findings raised concerns about whether wastewater escaping from the defective pipework could have contributed to deterioration of the surrounding ground.

How Leaking Underground Drains Can Contribute to Subsidence

When an underground drainage pipe breaks, wastewater may escape into the surrounding soil rather than continuing through the drainage system.

Depending on the ground conditions, prolonged leakage can contribute to several problems:

• Soil erosion: Escaping water can wash away fine particles from the ground surrounding foundations and drainage pipes.
• Ground settlement: Loss of supporting material can contribute to localised sinking or movement.
• Foundation movement: Changes in ground conditions may affect the support beneath nearby structures.
• Cracking in brickwork: Differential movement can result in stepped or diagonal cracks appearing in external walls.
• Recurring drainage problems: Broken pipes and displaced joints can allow debris to accumulate, leading to repeated blockages.

Although a defective drain can contribute to subsidence, the presence of cracking does not automatically prove that leaking drainage is responsible. A structural engineer may be required to establish the cause and significance of building movement.

Why Previous Drainage Repairs Should Be Investigated

At this Chiswick property, evidence of previous drainage repairs was discovered during the investigation.

Unfortunately, poorly executed repairs can sometimes conceal underlying structural drainage problems rather than resolve them.

Incorrectly connected pipes, inadequate seals, displaced joints and unsupported underground drainage sections may continue to leak for years without obvious signs at ground level.

A professional CCTV drainage survey can identify these hidden defects, allowing appropriate repairs to be recommended before further deterioration occurs.

Post-Purchase Drain Surveys for Properties With Cracking or Structural Movement

Many homeowners only discover underground drainage problems after completing the purchase of their property.

A standard homebuyer survey does not usually involve a detailed internal CCTV examination of the underground drainage system.

This means serious defects, including collapsed pipes, open joints, damaged bends and previous inadequate repairs, can remain undetected.

Rapid Drainage and Plumbing Ltd provides professional CCTV drainage surveys and underground drainage investigations for homeowners, property buyers, surveyors and structural engineers throughout Chiswick and West London.

Our specialist investigations can help establish whether drainage defects are present and whether further repairs or structural assessments are required.

Specialist Subsidence and Underground Drainage Investigations in West London

Based in Ealing, Rapid Drainage and Plumbing Ltd regularly investigates broken drains, leaking underground pipework and suspected drainage-related ground movement throughout Chiswick W4, Bedford Park, Turnham Green, Grove Park, Stamford Brook, Gunnersbury, Acton, Ealing, Brentford, Kew, Hammersmith, Richmond and surrounding West London areas.

We combine professional MSCC5 CCTV drainage inspections, electronic drain tracing, high-pressure water jetting, mechanical descaling, localised structural patch repairs and targeted excavation to identify and address underground drainage defects.

If you have discovered cracking, ground settlement or defective drainage after purchasing a property, contact Rapid Drainage and Plumbing Ltd on 0207 101 4142 to arrange a professional drainage investigation.
